AUDI
PUEBLA

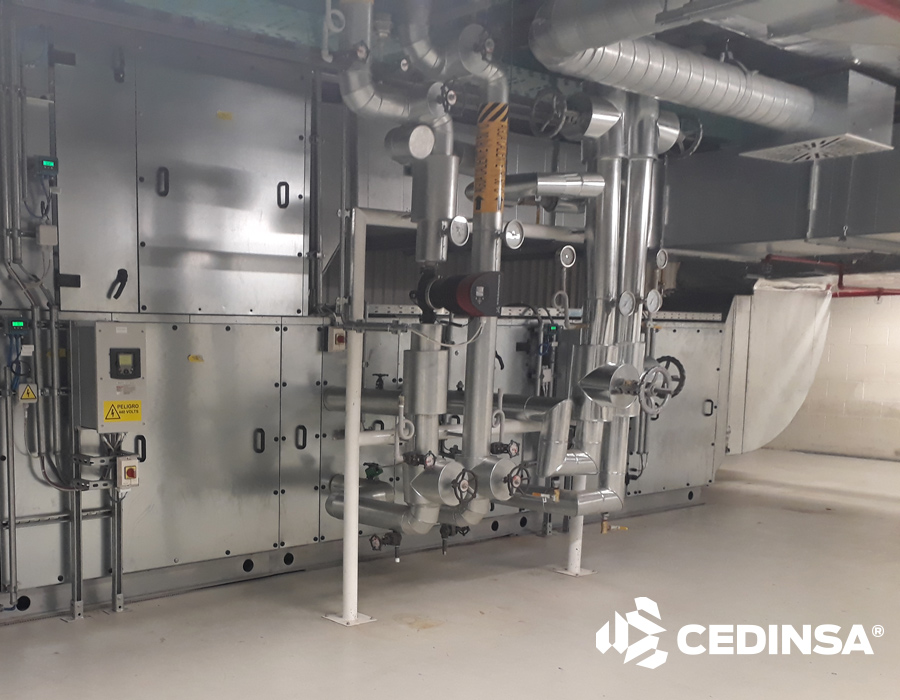

Design, manufacture, transportation, installation and start-up of general ventilation in warehouses in the town San José Chiapa, Puebla.

• Ventilation of warehouses Pressing, Tinsmithery, Assembly, Painting and General Offices
• 140 x Air Handling Units
• 1,400 Tons of Ductwork
• 350 Extraction fans
• 400 VRF Mini split for offices

FUJITA
GUANAJUATO

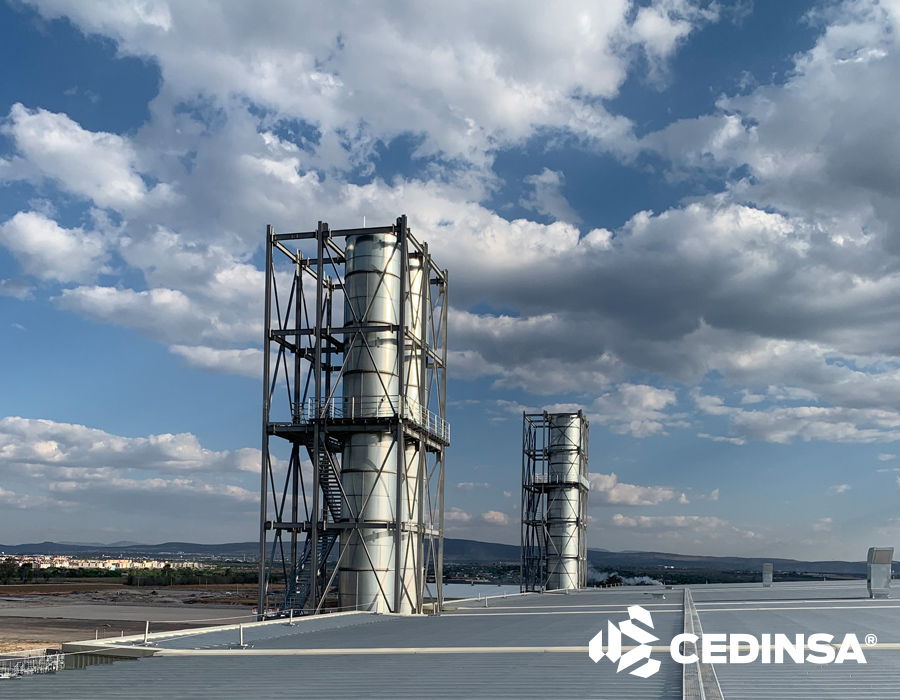

Design, Manufacture, Transportation and Assembly of Smokestacks in the town Apaseo el Grande, Guanajuato for the TOYOTA plant.

• Supply and assembly of 76 Extraction smokestacks for the Welding Shop, Resin Shop, Quality Control and Paint Shop warehouses
• 154 Tons of Galvanized Steel, Stainless Steel, Commercial Black Steel material
• Square smokestacks from 500 x 600 mm to 3,600 x 3,000 mm and 18 meters high, the construction of the duct was TDC, crimped and welded
• Circular smokestacks from Ø450 mm to 4,000 mm and 26 meters high, the construction of the duct was spiral duct, crimped, welded and flanged

GALLAHER KAISER
USA

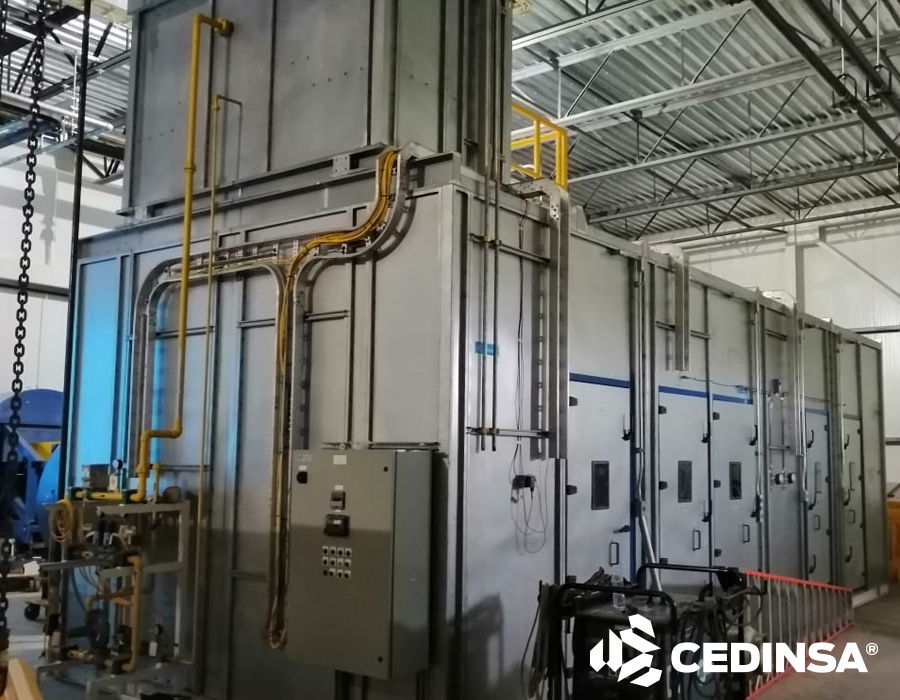

Design, manufacture and transportation of Air Handling Units in the town Fort Valley, GA, USA for the Blue Bird Corporation plant.

• 2 x UMA (195,500 m³/hour and 136,000 m³/hour) for air supply to bus paint booths
• 1 x UMA (102,000 m³/hour) for air supply to unit cooler

UNITEXA
HONDURAS

Design, manufacture and transportation of Air Handling Units in the town Choloma, Honduras.

• 2 x UMA (357,000 m³/hour and 200,000 m³/hour) for air supply for air conditioning of production area, offices and cafeteria
• 3 x UMA (40,000 m³/hour and 2 of 140,000 m³/hour) for air supply for cooling of Quench process (manufacture of synthetic thread)

HONDA
CANADÁ

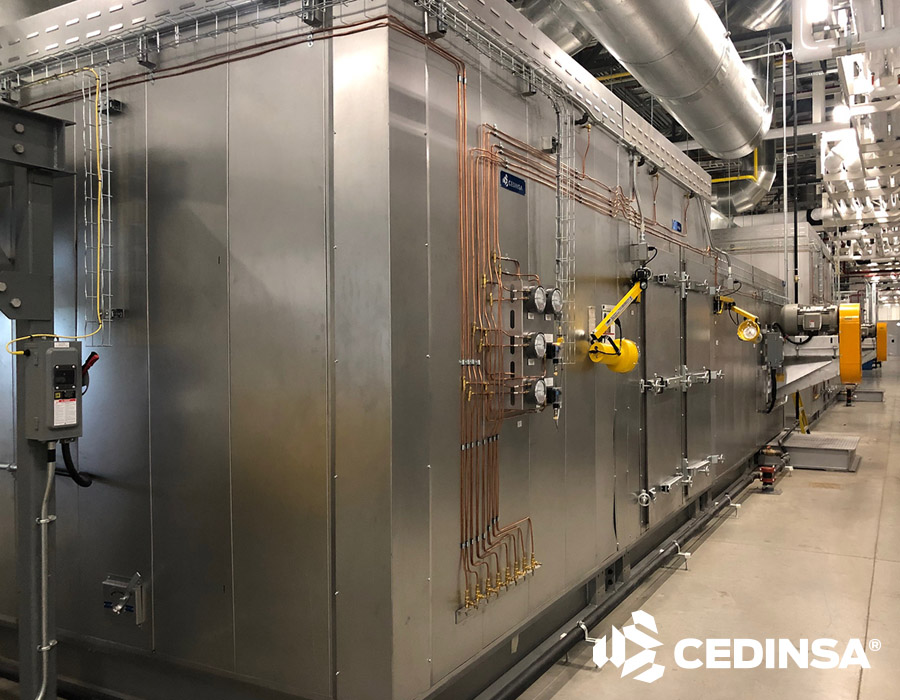

Design, manufacture and transportation of Combustion Chambers in province of Ontario, Canada.

• 7 x Combustion Chambers for air supply for automotive paint curing ovens
• 3 x Cooling Units for air injection to cooling tunnel

COMPAS
MEXICO

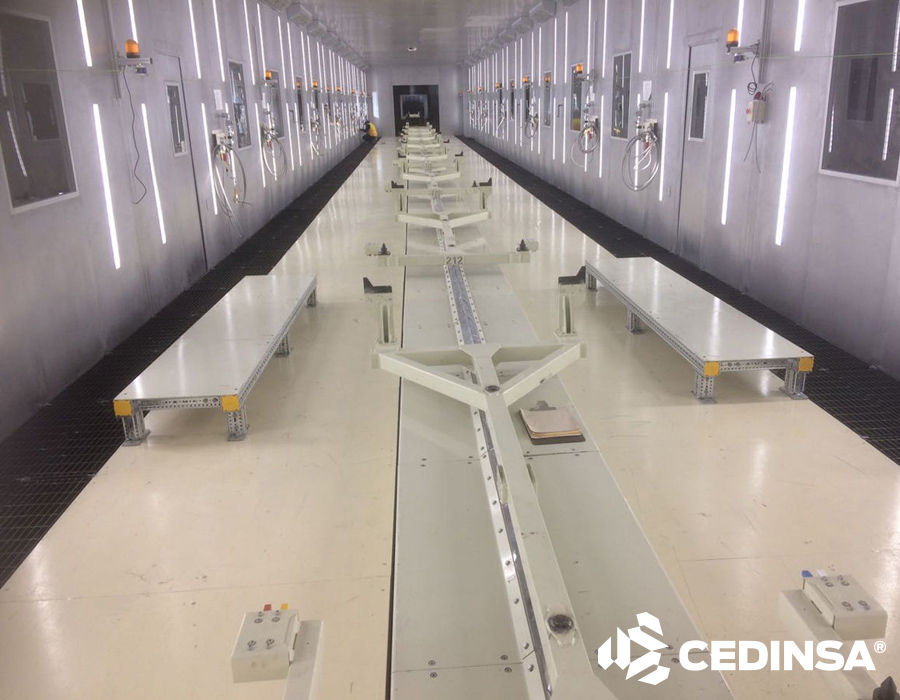

Design, manufacture, installation and start-up of rework booths on the paint line, including the processes of:
